K-Series
K Series — Dimensions & Performance
TCM*K-*S — Tempo Clamp knurled for metric holes, stainless steel. Ergonomic wing design for intuitive quarter-turn operation.
- Hand-operated, torque wrench recommended.
- Shear strength: 5000 N; Tension load: 5000 N* (*reduced <5 mm).
- Recommended hole tolerance: +0.02 / −0.02.

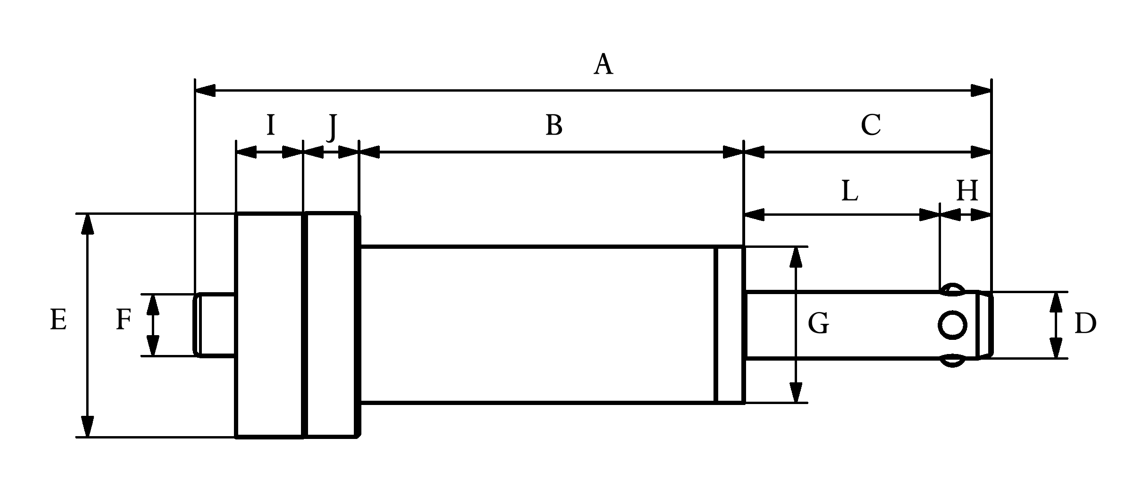

| Part Number | Clamping range | A | B | C | Hole | E | F | G | H | I | J | Clamping force kN | Hand tight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TCM8K1050S | 10-50 mm | 174.5 | 85 | 59.25 | 8 | 35 | 8 | 24 | 6.4 | 12 | 10 | 1.5 | 1.25 |
| TCM8K50100S | 50-100mm | 225,15 | 85 | 111,25 | 8 | 35 | 8 | 24 | 6,4 | 12 | 10 | 1,5 | 1.25 |
| TCM10K1050S | 10-50mm | 174,5 | 85 | 59,25 | 10 | 35 | 8 | 28 | 9,6 | 12 | 10 | 2,7 | 2 |
| TCM10K50100S | 50-100mm | 225,15 | 85 | 111,25 | 10 | 35 | 8 | 28 | 9,6 | 12 | 10 | 2,7 | 2 |
| TCM10K100200S | 100-200mm | 375,5 | 135 | 211,25 | 10 | 35 | 8 | 28 | 9,6 | 12 | 10 | 2,7 | 2 |
| TCM12K1030S | 10-30mm | 135,5 | 64 | 41,25 | 12 | 40 | 11,05 | 28 | 9,25 | 12 | 10 | 3,5 | 3 |
| TCM12K1050S | 10-50mm | 174,5 | 85 | 59,25 | 12 | 40 | 11,05 | 28 | 9,25 | 12 | 10 | 3,5 | 3 |
| TCM12K50100S | 50-100mm | 225,15 | 85 | 111,25 | 12 | 40 | 11,05 | 28 | 9,25 | 12 | 10 | 3,5 | 3 |
| TCM12K100200S | 100-200mm | 375,5 | 135 | 211,25 | 12 | 40 | 11,05 | 28 | 9,25 | 12 | 10 | 3,5 | 3 |
| TCM14K50100S | 50-100mm | 215,15 | 85 | 111,25 | 14 | 40 | 10 | 34 | 10,25 | 12 | 10 | 3,8 | 3.5 |
| TCM14K100200S | 100-200mm | 375,5 | 135 | 211,25 | 14 | 40 | 10 | 34 | 10,25 | 12 | 10 | 3,8 | 3.5 |
| TCM16K50100S | 50-100mm | 225,15 | 85 | 111,25 | 16 | 45 | 11 | 36 | 10,25 | 12 | 10 | 4.8 | 4.5 |
| TCM16K100200S | 100-200mm | 375,5 | 135 | 211,25 | 16 | 45 | 11 | 36 | 10,25 | 12 | 10 | 4.8 | 4.5 |
| TCM20K50100S | 50-100mm | 225,5 | 85 | 111,25 | 20 | 50 | 14 | 40 | 10,25 | 12 | 10 | 10 | 7 |
| TCM20K100200S | 100-200mm | 375,5 | 135 | 211,25 | 20 | 50 | 14 | 40 | 10,25 | 12 | 10 | 10 | 7 |
