H-Series

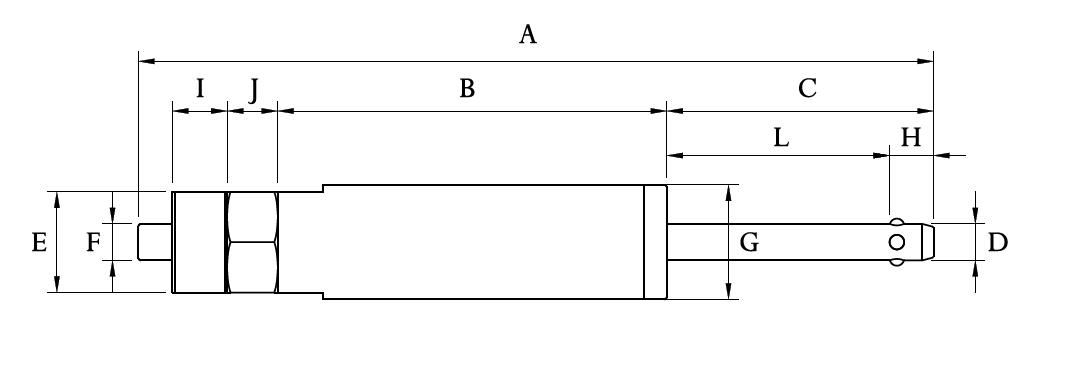

H Series — Dimensions & Performance
TCM*H-*S — Stainless series variant.
- Tool-operated, torque wrench recommended.
- Optional self-locking, double-slotted nut for vibration resistance.
| Part Number | Clamping range | A | B | C | Hole | E | F | G | H | I | J | Clamping force kN | Hand tight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TCM8H1050S | 10-50 mm | 174.5 | 84 | 60.25 | 8 | 35 | 8 | 24 | 6.4 | 12 | 10 | 1.5 | 1.25 |
| TCM8H50100S | 50-100mm | 225,15 | 84 | 111,25 | 8 | 35 | 8 | 24 | 6,4 | 12 | 10 | 1,5 | 1.25 |
| TCM10H1050S | 10-50mm | 174,5 | 82 | 60.25 | 10 | 35 | 8 | 27 | 9,6 | 12 | 13 | 2,7 | 2 |
| TCM10H50100S | 50-100mm | 225,15 | 82 | 111,25 | 10 | 35 | 8 | 27 | 9,6 | 12 | 13 | 2,7 | 2 |
| TCM10H100200S | 100-200mm | 375,5 | 132 | 211,25 | 10 | 35 | 8 | 27 | 9,6 | 12 | 13 | 2,7 | 2 |
| TCM12H1030S | 10-30mm | 135,5 | 59 | 41,25 | 12 | 30 | 11 | 34 | 10,25 | 12 | 16 | 3,5 | 3 |
| TCM12H1050S | 10-50mm | 174,5 | 79 | 60,25 | 12 | 30 | 11 | 34 | 10,25 | 12 | 16 | 3,5 | 3 |
| TCM12H50100S | 50-100mm | 225,15 | 79 | 111,25 | 12 | 30 | 11 | 34 | 10,25 | 12 | 16 | 3,5 | 3 |
| TCM12H100200S | 100-200mm | 375,5 | 129 | 211,25 | 12 | 30 | 11 | 34 | 10,25 | 12 | 16 | 3,5 | 3 |
| TCM14H50100S | 50-100mm | 215,15 | 82 | 111,25 | 14 | 32 | 10 | 36 | 10,25 | 12 | 18 | 3,8 | 3.5 |
| TCM14H100200S | 100-200mm | 375,5 | 132 | 111,25 | 14 | 32 | 10 | 36 | 10,25 | 12 | 18 | 3,8 | 3.5 |
| TCM16H50100S | 50-100mm | 225,15 | 72 | 111,25 | 16 | 36 | 11 | 41 | 10,25 | 12 | 19 | 4.8 | 4.5 |
| TCM16H100200S | 100-200mm | 375,5 | 122 | 211,25 | 16 | 36 | 11 | 41 | 10,25 | 12 | 19 | 4.8 | 4.5 |
| TCM20H50100S | 50-100mm | 225,5 | 73 | 111,25 | 20 | 41 | 14 | 47 | 10,75 | 12 | 22 | 10 | 7 |
| TCM20H100200S | 100-200mm | 375,5 | 123 | 211,25 | 20 | 41 | 14 | 47 | 10,75 | 12 | 22 | 10 | 7 |
